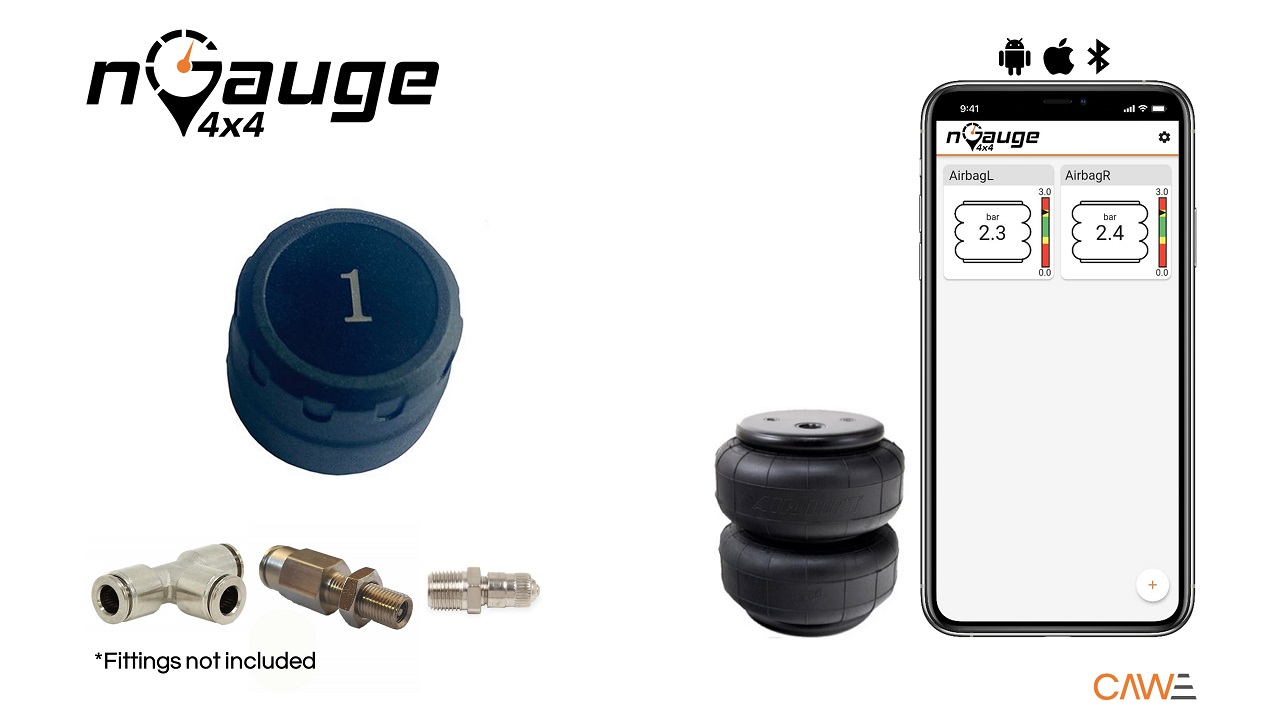

nGauge Bluetooth Suspension Pressure Monitoring Sensor

Suspension Pressure Monitoring Sensor

The flexibility of our nGauge 4x4 system enables us to use a normal Bluetooth TPMS sensor for suspension pressure as well. These sensors are exactly the same as the External TPMS sensors. Thus, if you are buying TPMS sensors as well, feel free to use left overs from a kit for suspension and just change the icon on the nGauge 4x4 App.

Please note that due to the variety of air suspension kits and hose sizes available, we recommend that you ask your local fitment sensor to install an additional INFLATION VALVE/S to your existing air suspension kit. This enables you to buy a standalone tyre pressure sensor (or sensors if you have a split suspension kit) from us and screw this onto the inflation valve to get the measurement on our nGauge 4x4 application.





Pressure Gauge

REPLACED BY







Features:

  • Wireless
  • External installation
  • Easy to install with Anti Theft protection
  • Monitors Pressure and temperature
  • Real time monitoring
  • Warning for Leak, High Temp, High Pressure, Low Pressure, Low Battery
  • Replaceable CR1632 battery

What's in the box

  • Sensors
  • Anti Theft Nut
  • Spanner*

Sensor Specifications

  • Tire Pressure Detection Range: 0-1300kPa (0-13bar)
  • Tire Pressure Detection Accuracy: ± 10kPa
  • Tire Temperature Detection Accuracy: ± 3℃
  • Working Temperature: -30℃ ~ +80℃
  • Battery Capacity: 140mAh
  • Battery Life: +-3 Years (based on 3-5 hours of daily driving, temperature conditions can affect battery life)
  • Sensor Weight: 8g±1g
  • Installation and care instructions view the manual
  • Warranty voided if care and installation instructions are not followed. Please consult the instructions and manual to determine if the sensors are suitable for your application. Do not submerge in water or clean with high pressure washer.

 Like all Pressure Sensor units, the sensors go into battery saving mode when stationary or during periods where there are minimal pressure differences.

*No spanner included in single and double kit. It can be purchased separately here

iOS / iPhone users, please note, should you wish to use the nGauge 4x4 App while it is minimized (running in background), our Gateway is required.



R424.00
Suspension Options:
